Comparative analysis of building materials in clean operating room

May 20,2019 | Blog

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Recommended Product

The building materials of the wall top of the clean operating room are mainly divided into two categories: metal and non-metal. With the development of science and technology, more and more materials are used in clean operating rooms. Wiskind now compares several main materials used at home and abroad as follows for your reference.


The characteristics and construction points of metal building materials for the wall top of clean operating room. From the analysis of the conditions that the wall top of clean operating room should meet, the best material recommended by experts at home and abroad is galvanized steel sheet.

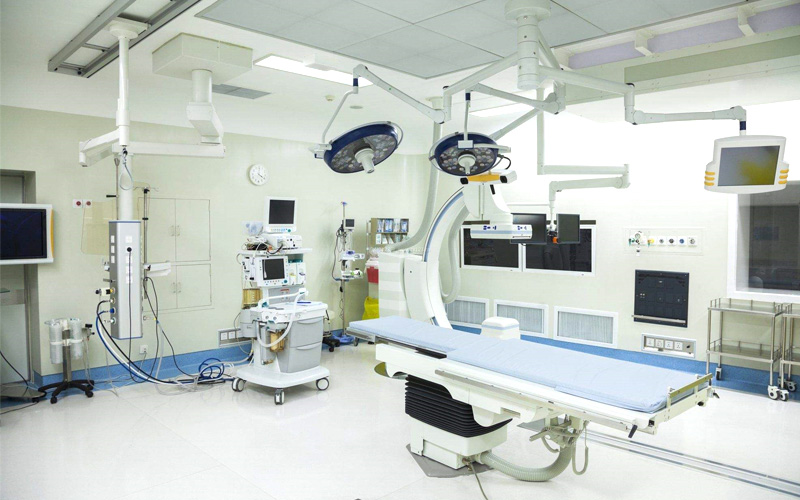

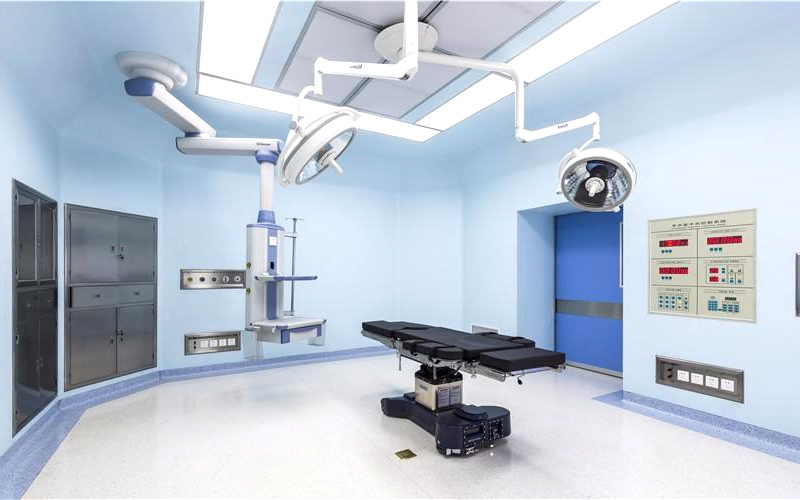

Clean Operating Room


1、Galvanized steel sheet


Galvanized steel sheet has eleven main requirements for clean operating room wall and top building materials. It is processed on site, then tied up, subarc welding, surface scraping and grinding of imported atomic ash, and spraying imported antimicrobial paint. After the operation room is completed, the whole seamless airtight body has better effect and low cost. In the construction and use, if the surface is damaged by strong impact, it can be scraped on the spot, sprayed with the same color paint or sprayed with anti-bacterial paint again after several years of use, and the operating room is the same as the new one.


The properties of stainless steel sheet are basically the same as those of galvanized sheet. When stainless steel plate is used as building material in clean operating room, the thickness of the plate is the same, which can reach 1.2mm to 1.5mm, and its anti-corrosion performance is much higher than other metal materials. But the price is high, no shielding function, the adhesion of the coating is slightly lower than other metal materials. There are two kinds of construction technology, one is the same as galvanized sheet processing, the other is the surface layer in the factory to do carbon paint or spray plastic treatment. When gluing the seams in the field assembly, the operating room is not a seamless whole after completion, and the method is the same as the construction technology of aluminium sheet. The construction period of the former method is longer, and that of the latter can be shortened.


2、Cplour steel sandwich plate


The color steel sandwich panel is a kind of sandwich panel, which is made of color coated steel plate, core materials such as rock wool, paper honeycomb, aluminum honeycomb, PU, magnesium oxysulfide, magnesium oxide, corner and keel as edge sealing, and compounded with special binder. The width of the plate is 1180mm, and the length of the plate can be determined according to the needs of the project. The thickness of the plate is 50mm, 75mm, 100mm, 150mm and other specifications.


The self-weight of color steel plate is light, which is 1/20-1/30 of the weight of concrete. It has high strength and can be used for light structure and maintenance structure. The thermal conductivity is 0.034W/mk. The construction is convenient and fast, the color steel plate is highly equipped, does not need formwork support, no wet operation, and the construction period is short. Colorful decoration, there are a variety of colors to choose, can cooperate with different interior decoration design requirements for decoration, decorative effect is good. The galvanized surface is thicker, wear-resistant, rust-resistant, corrosion-resistant, heat preservation performance is good, sound insulation, moisture-proof, fire-proof, and maintenance and daily cleaning are also very convenient.


Colored Steel Sandwich Cleanroom Panel


Shandong Wish Wiskind clean panel features:

1、Insulation, sound absorption and sealing properties.


2、Rockwool core material has the characteristics of fireproof and thermal insulation. The fire resistance limit can reach one hour, and the drowning rate is over 98%.


3、The board has high flatness, bright color and beautiful appearance. Face material Wiskind can provide a variety of options such as color steel plate, aluminum-magnesium-manganese color coated plate, stainless steel plate, titanium-zinc alloy plate, etc. The commonly used steel plates are Baosteel and Yanhui.


4、High strength, can be used for ceilings. All side joints have flush mating faces and are connected by aluminum profiles for excellent product performance. The rockwool cleanroom panels have a flexural load of 1.1KN /㎡.


5、Easy installation and flexible splicing combination, Wiskind clean room panel; can directly open holes and reserve conduits, improve installation efficiency, multiple loading and unloading, repeated use, material saving, labor saving and time saving.
