Prefabricated Opening Cleanroom Wall Panel With Individually Removable

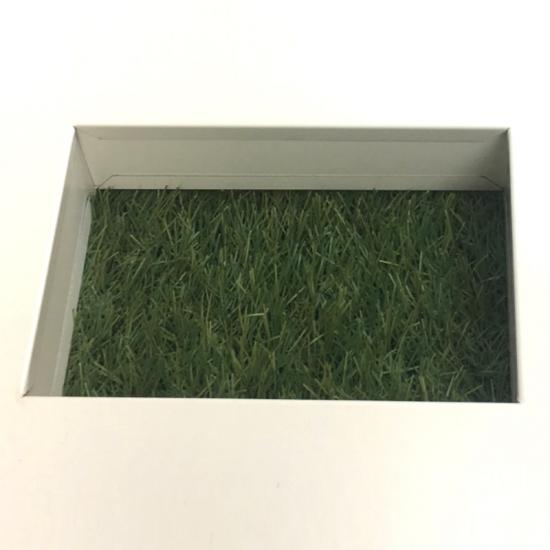

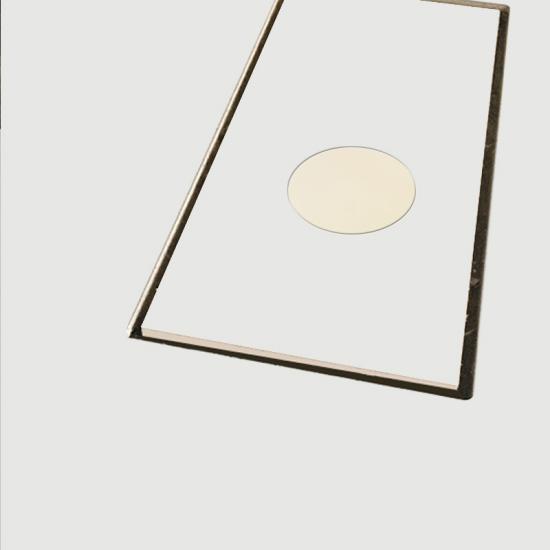

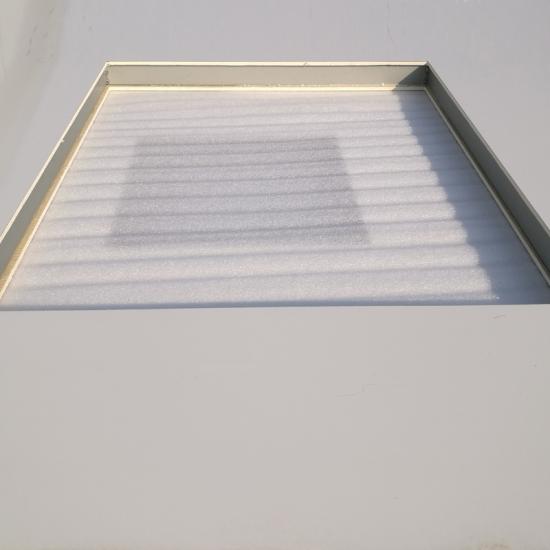

The customized convenient cut outs cleanroom wall panel system can be cut directly in the factory, the hole is reserved, the built-in keel is built, the site is installed, the appearance is convenient and fast, and the product is applied to the clean room vent, lamp mouth, equipment mouth, etc., to prevent the opening of the site twice.

Maximum Width Of Hole:From the side of 50 mm

Product Orign:China/ShanDong

Wall TCK: 50mm

Steel TCK:0.4-0.8mm

Outside Material:PPGI,Al-mg-Mn Alloy Steel,SS Steel,Ti-Zn Steel,VCM

Coating:PE,PVDF,HDP

Max Length:2200mm

Core Materials: PU,Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb,Plaster,EPS, etc.

Frame Thickness: 0.6-0.8mm

Applications: Pharmaceutical clean room, electronic clean room, food clean room, etc

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Recommended Product

Description

Product Descirption

Product Name

 Prefabricated Opening Cleanroom Wall Panel With Individually Removable

Maximum hole size

 50mm from the edge (for example: 1180mm plate width, maximum hole size 1080mm)

Maximum Length

 2200mm (no hole can be made in the center if the plate length is more than 5m)

Wall TCK

 50mm

Outer Plate Material

PPGI,Al-mg-Mn Alloy Steel,SS Steel,Ti-Zn Steel,VCM

Coating

PE,PVDF,HDP

Core Material

PU,Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb,Plaster,EPS,etc.

Application

Pharmaceutical Cleanroom, Electronic Cleanroom, Food Cleanroom, etc.

Remarks

1. The shape of the board is tracked by the cleaning technology department, and the size is issued by the technical department.

2. The board needs to determine the single glass magnesium, single gypsum, different coating layer installation direction.


Advantage:

1. Wiskind accepts customization the customized convenient hollow cleanroom wall panel system with a maximum opening size of 1000mm*2000mm.

2. The hollow cleanroom wall panel system adopts international advanced equipment,the error is less than 0.2mm, and the hole is beautiful and generous.

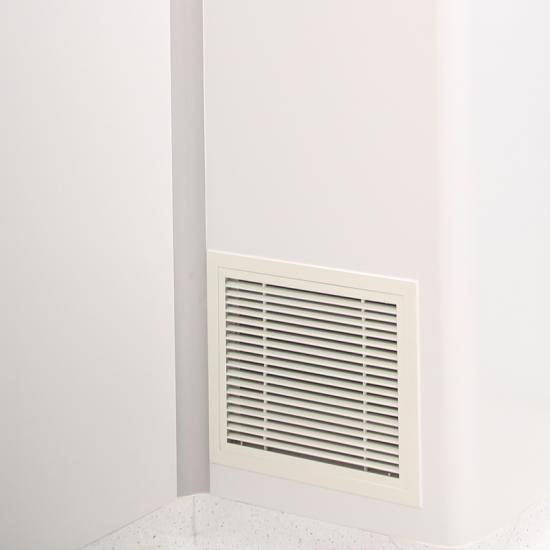

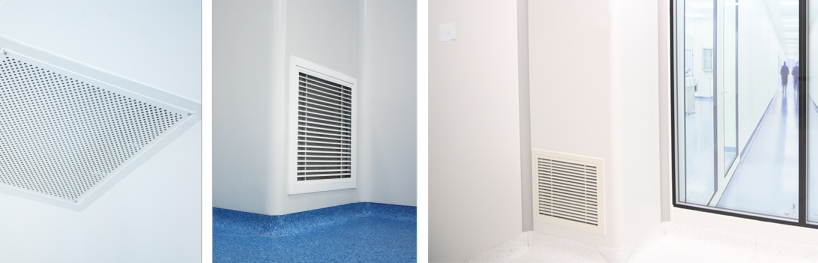

3. The product is applied toclean room vents, lamp sockets, equipment ports, etc.The surrounding aluminum keel is strengthened and thequality is stable.

4. The hollow cleanroom wall panel system has been applied to many engineering cases andwon the praise of customers.


hollow cleanroom wall panel system with a maximum opening size of 1000mm*2000mm
