Customized Mechanism PPGI Rockwool Cleanroom Wall Panel For Food Factory

Lead Time:7-12day


Max Length:9000mm

Wall Thickness:50mm,75mm,100mm

Steel Facer Thickness:0.4-0.6mm

Core Materials:PU,Rock Wool,Magnesium Board,Paper Honey Comb,EPS, Etc.

Outer Plate Material:PPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,VCM

Frame Thickness:0.6/0.8mm

Applications :Pharmaceutical Clean Room,Electronic Clean Room,Food Clean Room,etc.

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Recommended Product

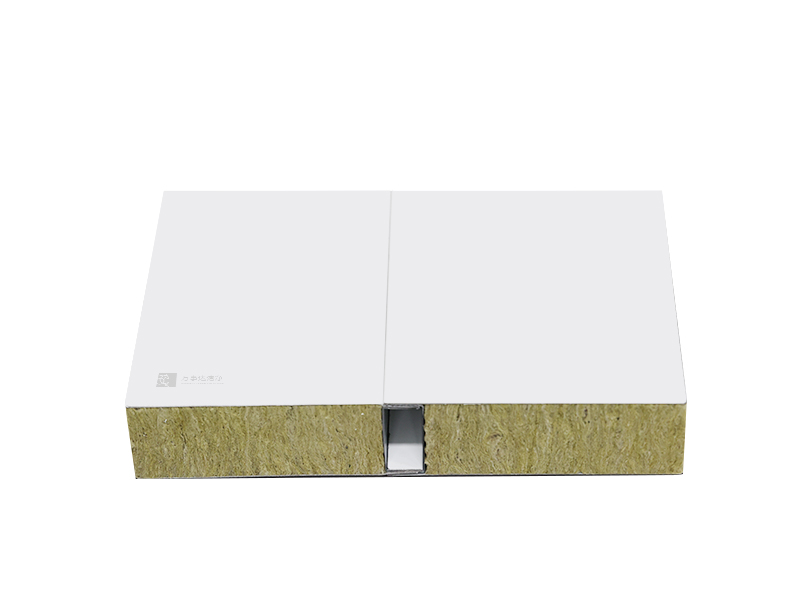

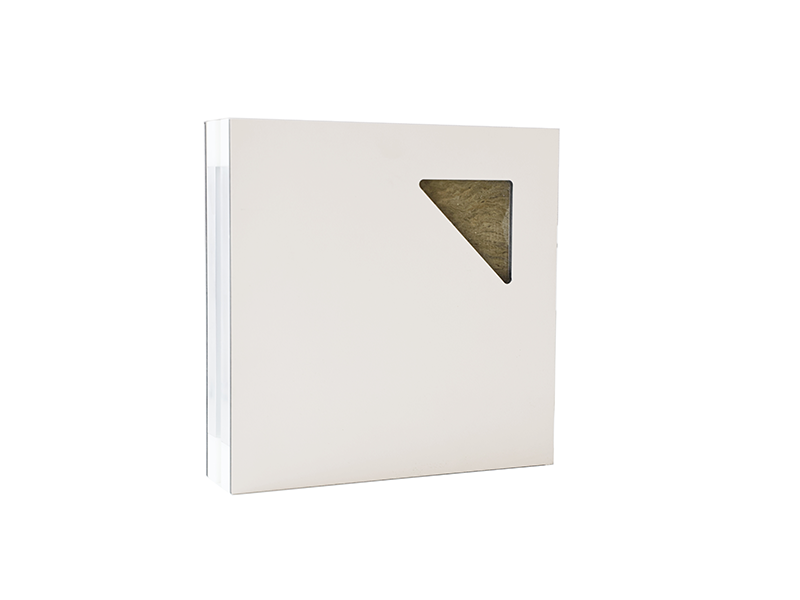

The mechanism cleanroom wall panel is sealed by two sides. It does not need aluminum profiles when connecting. It is directly inserted and has various core materials. It has core materials such as rock wool, puf, gypsum rock wool and glass magnesium rock wool. The mechanism cleanroom wall panel system can be applied to pharmaceuticals and electronics. The food industry can be customized according to the needs of customers.

Product Name

        Customized Mechanism PPGI Rockwool Cleanroom Sandwich Wall Panel For Food Factory



Max Length


Wall Thickness


Steel Facer Thickness


Outer Plate Material

PPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,VCM

HygiSteel™ - Customized color painted steel sheet for a better cleanroom environment



Core Material

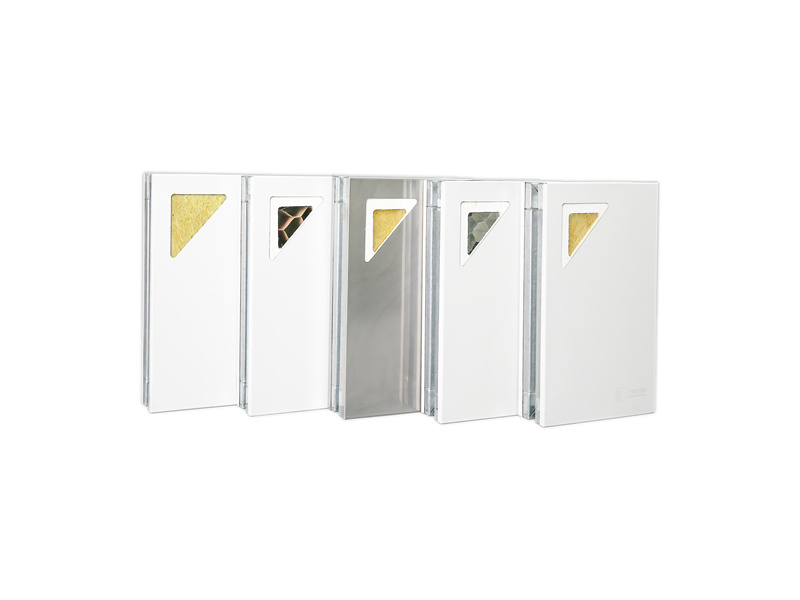

PU,Rock Wool,Magnesium Board,Paper Honey Comb,EPS,Etc.


Pharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc.

1. Modular mechanism cleanroom panel overall strength is high and the product quality is stable.

2. Wiskind accepts customization.

3. Reserved space in the tongue and groove for easy access to PVC pipe.

4. The mechanism cleanroom panel system does not need to be connected with the aluminum profile, the clean room wall is inserted into the wall,and the internal space is reserved,which can be directly used as a threading pipe,which is convenient and practical.

5. Male and Female connection type ,Closed seam,suitable in Biology laboratory.

6. The mechanism cleanroom panel is installed flush and clean in the cleanroom door, and Wiskind improves the overall scheme design for customers.

Rockwool cleanroom panel product features:

1. Wide range of applications

The product can be applied to the factory floor with clean requirements such as pharmaceutical, electronics and food.

2. Good physical and chemical properties

The steel surface of rock wool purification board product is baking coating or zinc coating, stainless steel plate, so the corrosion resistance is very good; the weight of the plate is 18-20kg/㎡, the core material has fireproof insulation (fire resistance limit: 30min), water (≥ 98%) performance; all side joints have flush butt joints, aluminum profiles, excellent product performance, 1.1KN/㎡ flexural load, high strength, impact resistance and shock resistance.

3. Convenient construction and installation

Can be customized, on-site splicing, easy to install; the clean board can directly open the hole and reserve the line pipe, improve the installation efficiency, and can be disassembled many times, the comprehensive benefits are very significant.

Rockwool cleanroom panel advantages

1. High strength, high density rock wool board inside, 4 to 5 times stronger than ordinary rock wool strip.

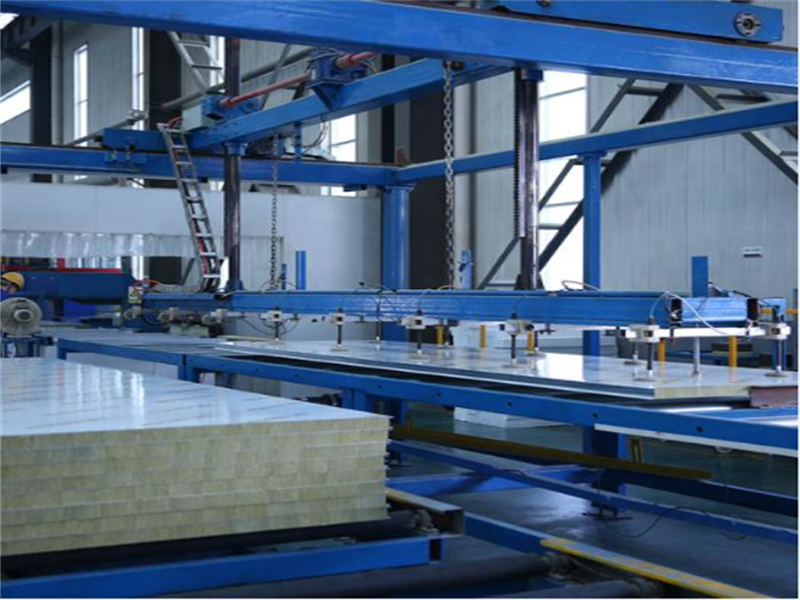

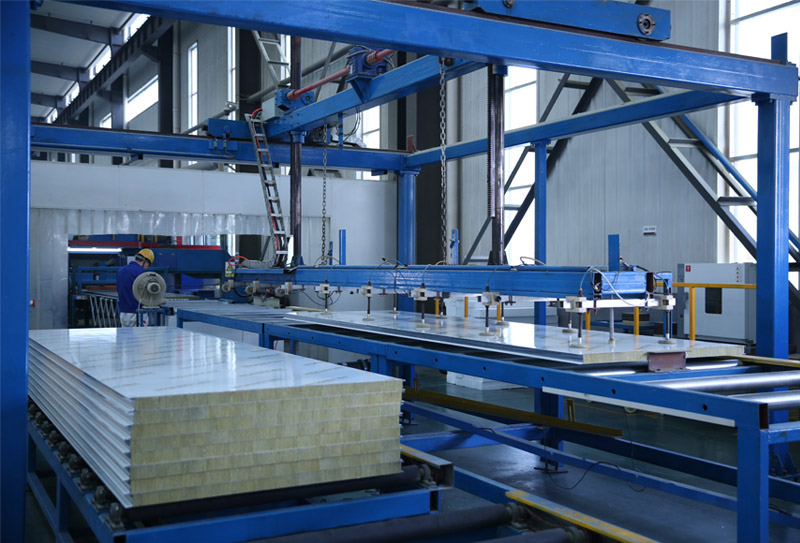

2. The rockwool cleanroom panel is produced by the world's first clean board automatic production line. Compared with the traditional clean board manual production line, the automatic production line improves production efficiency by 6-8 times and saves time.

3. The rockwool cleanroom panel can be used for reinforcement of the hole and the pipeline box is assembled in the factory in the factory, which effectively reduces the secondary pollution during use, especially in the operating room.

The mechanism cleanroom panel

Installation Method:

The mechanism cleanroom panel adopts a T-Grid ceiling tiles system. Wiskind's T-Grid Ceiling tiles Systems are connected by a cleanroom ceiling (also known as a wall panel) and a T-shaped aluminum profile.

The resistance to bending and adhesion, stable quality, people and equipment can walk on it. The ceiling system can be perfectly connected with the modular cleanroom panel system to ensure that the width of the cleanroom ceiling system connection gap and the wall gap are consistent, which improves the aesthetics of the cleanroom.

The ceiling system can be perfectly connected with the modular cleanroom panel system
