Customizable High-Quality Open Clean Glass Safe Escape Doors For Pharmaceutical

The clean room safety door is made of high-quality galvanized steel sheet, Italy PrimaPower-imported sheet metal production line, and multiple Japanese YASKAWA Yaskawa robotic joints. The clean surface of the cleanroom door is smooth and airtight.

Specification: 900*2100mm，1000*2100mm，1200*2100mm，1500*2100mm

Door frame thickness: 1.5 mm (Galvanized sheet)

Color:Red/Customizable

Filler: Flame Retardant Paper Honeycomb, Aluminum Honeycomb

Sealing device: Perimeter door sealing strips, plus an automatic drop-down seal at the base of the door

Lock type Crash bar

Hinge: 304 stainless steel hinge

Door leaf thickness: 1.0 mm (Galvanized sheet)

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

Dimensions	9002100mm (single door) 10002100mm (single door) 12002100mm (sub-mother door) 15002100mm (double swing door) Can Be Customized.
Door Frame Thickness	1.5 mm (Galvanized sheet)
Door Leaf Thickness	1.0 mm (Galvanized sheet)
Filler	Paper Honeycomb, Aluminum Honeycomb
Window	Double glazing, rounded / sharp corners, white / black boarders
Surface Treatment	Electrostatic powder coating
Lock type	Crash bar
Hinge	304 stainless steel hinge
Sealing Device	Perimeter door sealing strips, plus an automatic drop-down seal at the base of the door

The clean room safety door is made of high-quality galvanized steel sheet

Advantage：

1. Wiskind whole surface of the door is sprayed with electrostatic resin powder. The thickness of the paint surface is not less than 70um micron grade paint surface. The steel plate substrate is passivated before spraying. The paint surface has stronger adhesion and durability. It is better than general paint and has high temperature resistance. It is resistant to general disinfection and is more suitable for long-term use in the pharmaceutical industry and other industries that require frequent cleaning and disinfection, making it well-suited for long-term use in industries that require frequent cleaning and disinfection, especially the pharmaceutical industry.

2. The integral automatic pressing door bottom sealing strip is designed according to GMP requirements. After the door is closed, the sealing strip is automatically lowered to strengthen the overall airtightness of the door. The sealing strip is made of silicone rubber, which has good durability and is harmless to the human body.

The integral automatic pressing door bottom sealing strip is designed according to GMP requirements

3. The door window adopts double-layer cleanroom hollow tempered glass and is surrounded by black (or white) printed edges. This window is flush with the surface of the door leaf. It is beautiful and clean, and does not fog in the environment, affecting observation.

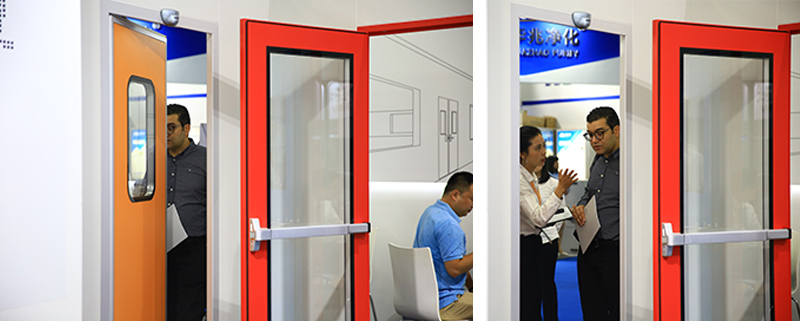

A Wiskind Cleanroom security door on display in the 2019 Shanghai CPHI exhibition, receiving praise from customers and experts alike.

Wiskind clean room security door in 2019 Shanghai CPhI exhibition
