Security Smart Access Modular Cleanroom Doors For Pharmaceutical Clean Room With ISO9001

Wiskind's modular cleanrooms can be equipped with an integrated cleanroom door access control system, providing high-tech access management and personnel monitoring. The system uses a centralized control module to provide power and signals to each access point, reducing the need for additional wiring and power sources.

Specification: 900mm*2100mm，1000mm*2100mm，1200mm*2100mm，1500mm*2100mm

Door frame thickness: 50mm

Color:Blue/White/Orange/Customize

Filler: Flame Retardant Paper Honeycomb, Aluminum Honeycomb

Hinge: Aluminum Cleaning Special Hinge

Door Frame Material: High Strength Aluminum Alloy

Door Leaf Material: Color Steel Plate，HPL

View Panel: Double glazing, frosted glass rounded corners, right angles, (border white and black)

Sealing Device: Door sealing strip and door bottom automatically pressing the sealing strip

Share to

Any questions?

We have a passion for unconventional solutions that bring your vision to life.

Talk to us now!

Description

Single Cleanroom Doors Specification	900 × 2100 mm, 1000 × 2100 mm
Double Cleanroom Doors Specification	1200 × 2100 mm, 1500 × 2100 mm
Door Frame Material	High Strength Aluminum Alloy
Door Frame TCK	50 mm
Door Leaf Material	Color Steel Plate,HPL
Filler	Paper Honeycomb,Aluminum Honeycomb
Window	"5mm+5mm" TCK Double Glass
	Right angle, Round angle
	Glass Edge Color:White,Black
Surface Treatment	Electrostatic Alumina Profile
Lock	GEZE Smart Lock
Hinge	Aluminum Cleaning Special Hinge
Sealing Device	Perimeter door sealing strips， plus an automatic drop-down seal at the base of the door

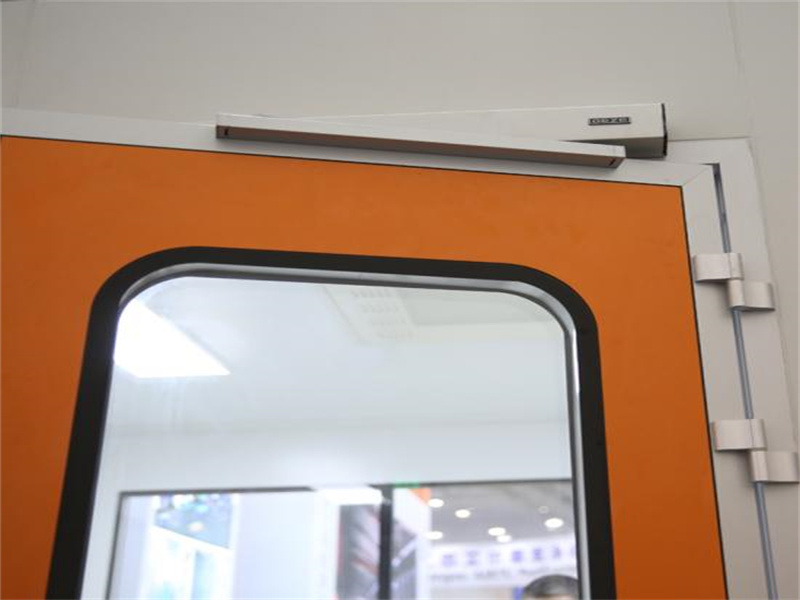

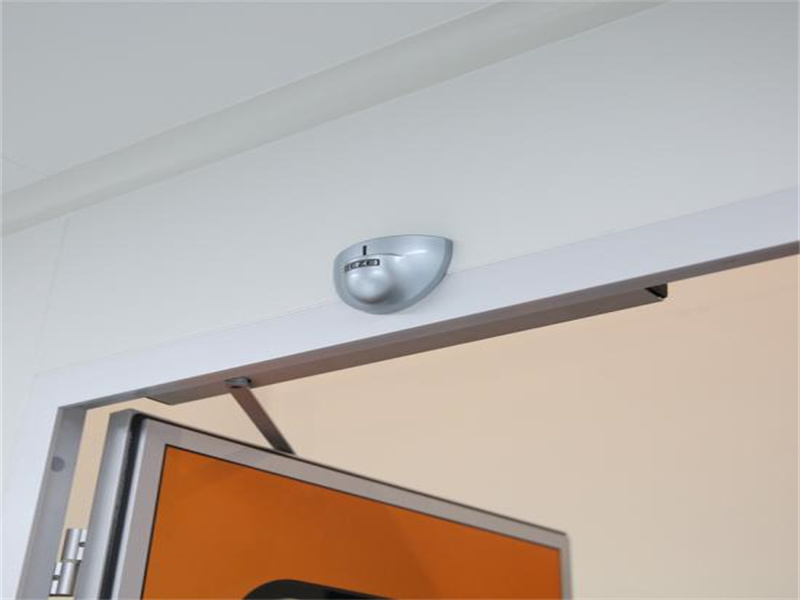

GEZE‘s door closers excel in functionality, performance, and reliability, making them an ideal choice for secure cleanroom applications. These systems feature a uniform design, work with a wide range of door sizes and weights, and adjust easily for streamlined installation. GEZE continually enhances its systems with modern features that meet the latest requirements for fire-protection, accessibility, and long-term durability.

With aluminum profile clean room door collocation use, beautiful generou.

Advantage：

Cleanrooms for pharmaceuticals, micro-electronics, lab, hospitals, etc.
Fully customizable to project requirements.
Features a centralized control module to provide power and signals to each access point, reducing the need for additional wiring and power sources.
The panel filled with flame-retardantpaper honeycomb (aluminum honeycomb) with light weight and high strength frame.

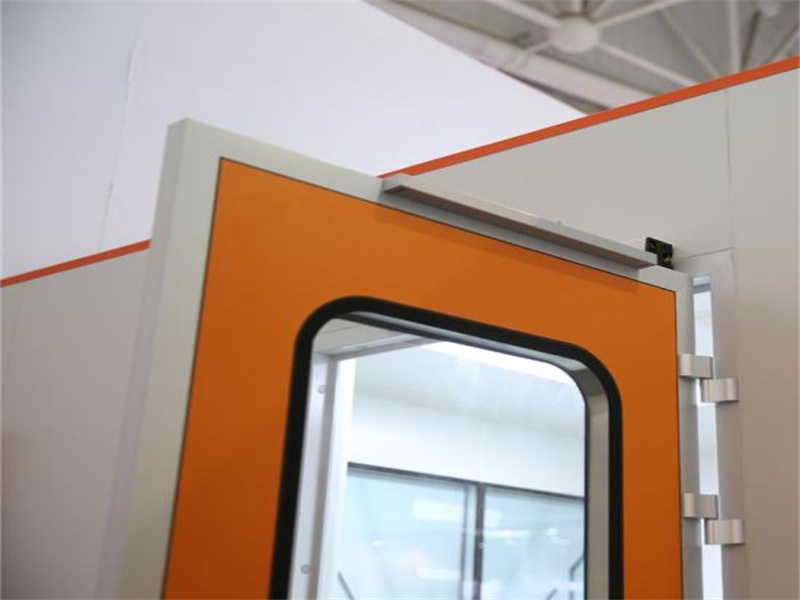

Wiskind’s patented adjustable cleanroom hinge can be installed on the security door, offering an elegant design that is dust-free, easy to clean, and built for long-lasting durability. It is resistant to acid and alkali disinfectants, and its patented design allows for precise adjustment of the door seam.
Developed in cooperation with the German manufacturer GEZE, the door is equipped with a cleanroom-friendly, fire-rated split handle lock and a universal European-standard lock body. The Euro-profile design ensures strong compatibility, allowing easy replacement and convenient maintenance. When paired with the aluminum-profile cleanroom door, it offers both durability and a sleek, modern appearance.
